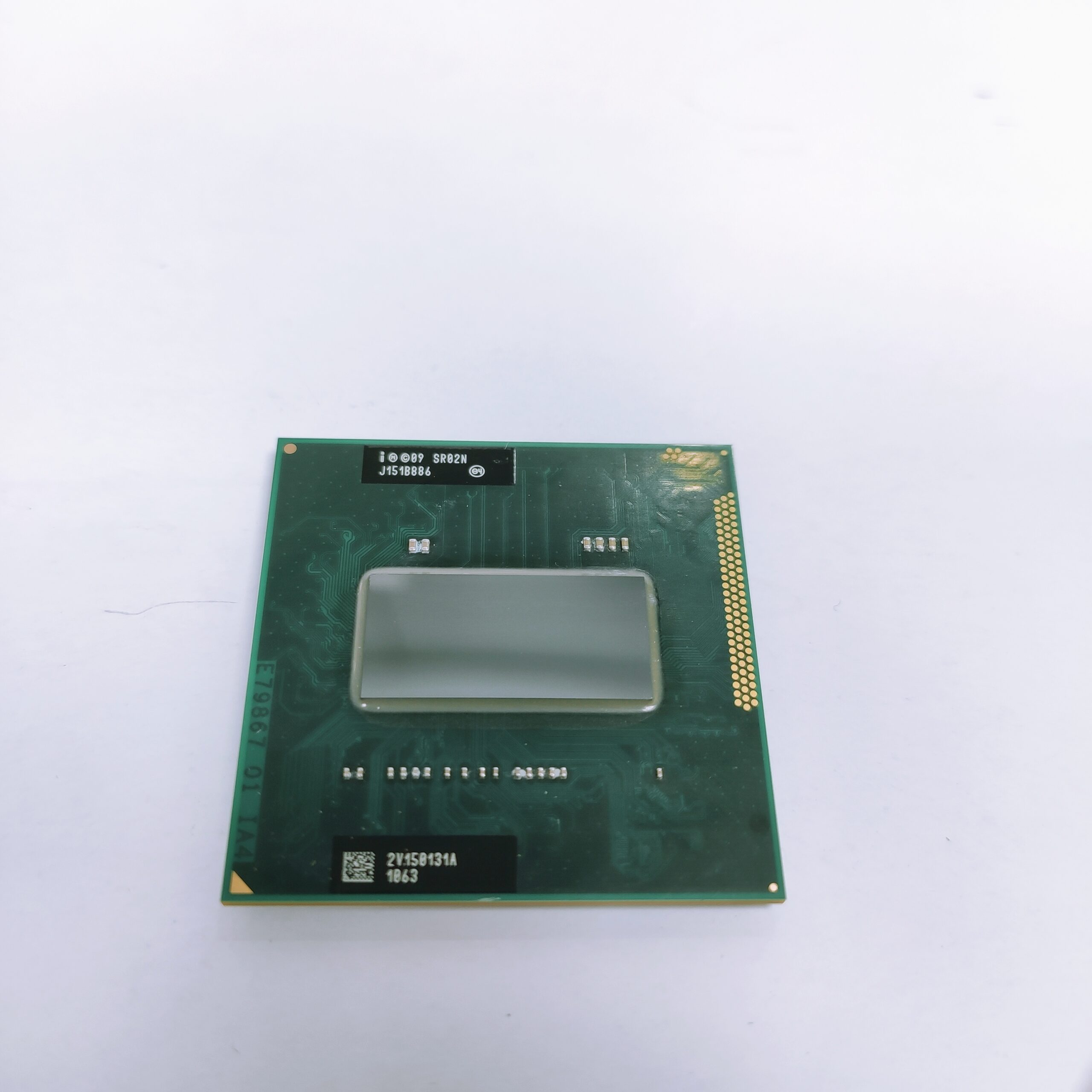

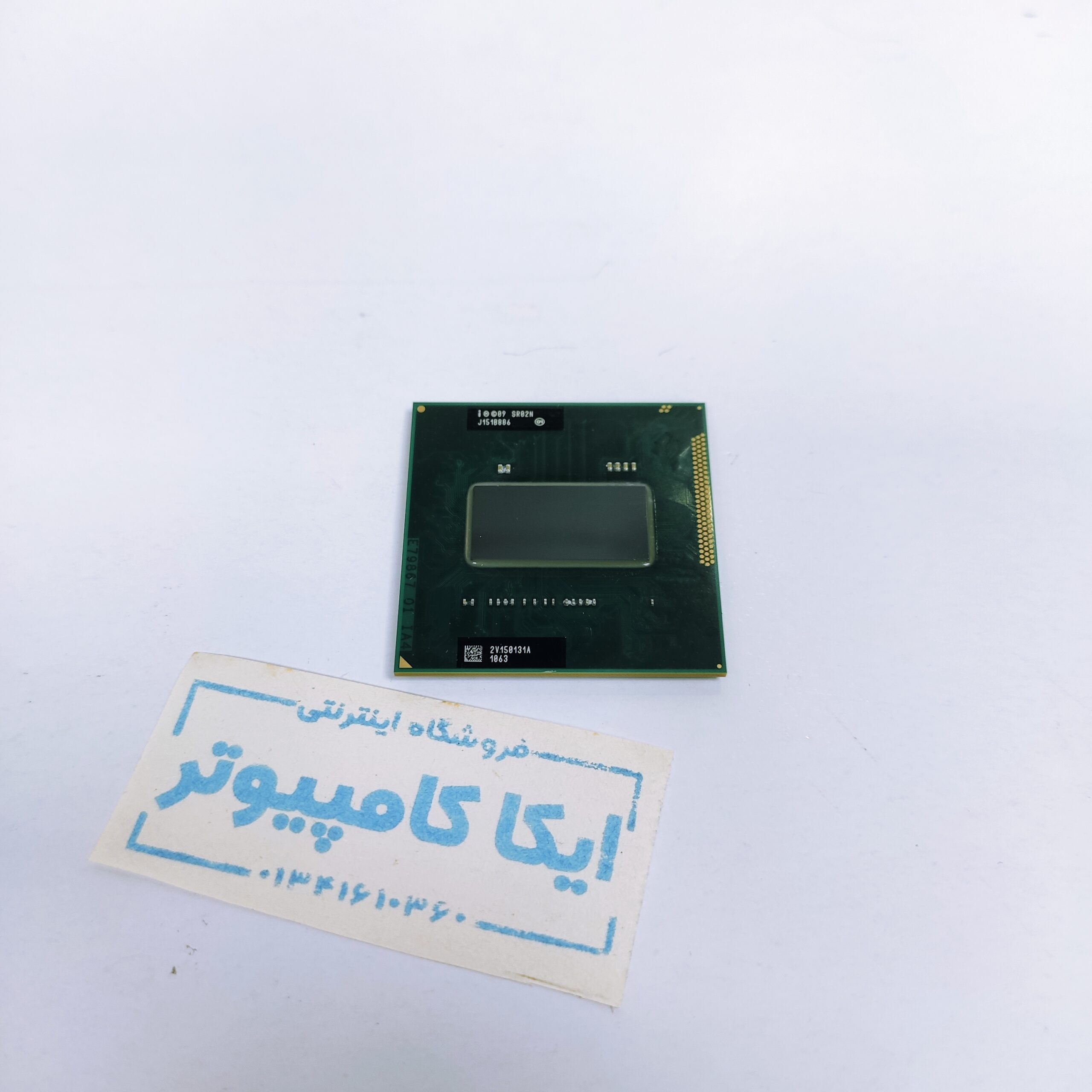

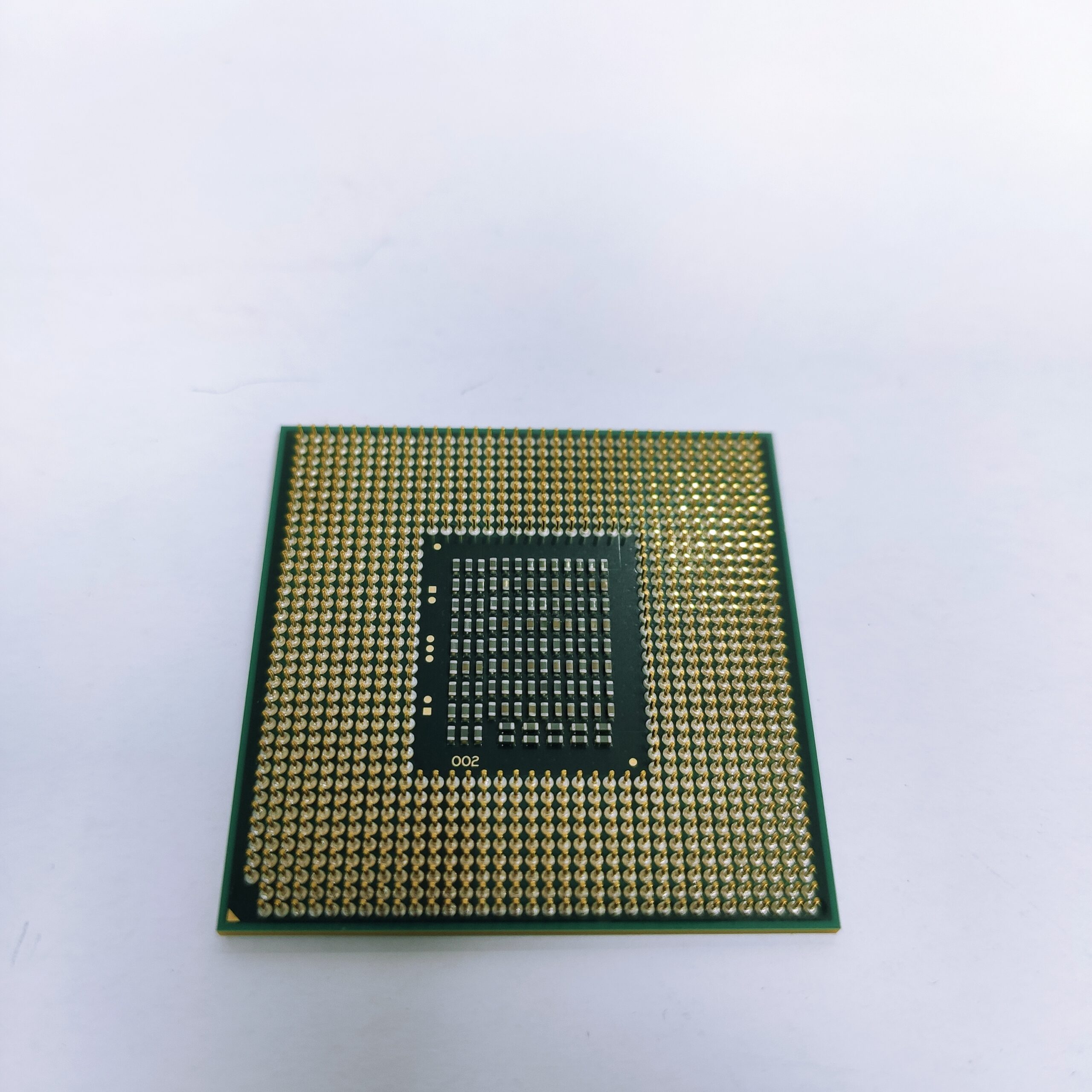

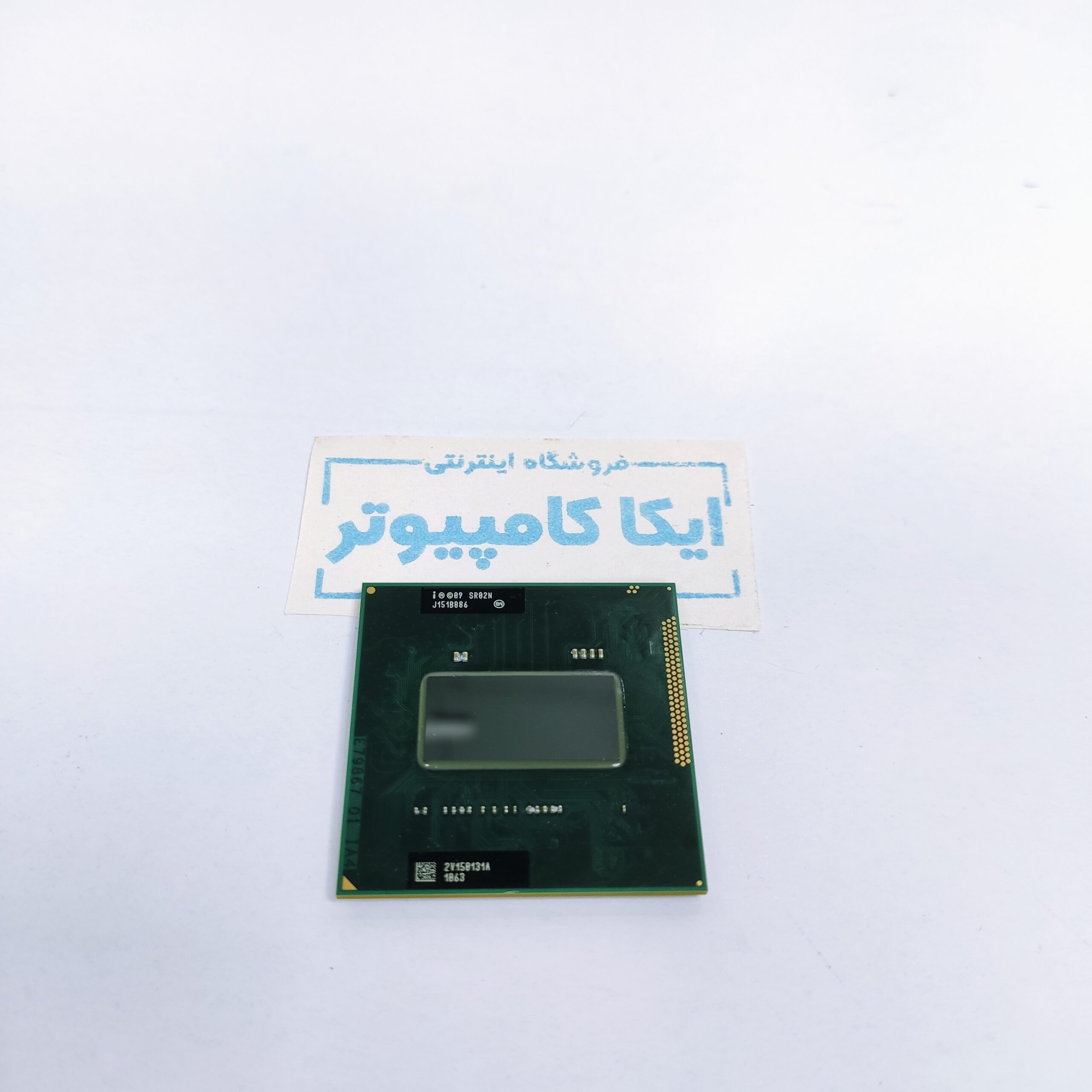

پردازنده لپ تاپ Intel Core i7-2670QM
(استوک اصلی)
از روی لپ تاپ کارکرده اصلی ایسر Acer Aspire 5755G برداشته شده .
این پردازنده معمولاً به سادگی قابل تعویض نیست در صورت عدم آشنایی با فرآیند تعویض ، نصب توسط تعمیرکار توصیه میشود.
مشخصات کلی پردازنده لپ تاپ Intel Core i7-2670QM
| General information | |||||||
| Type | CPU / Microprocessor | ||||||
| Market segment | Mobile | ||||||
| Family | Intel Core i7 Mobile | ||||||
| Model number | |||||||
| CPU part number |
|
||||||
| Frequency |
2.2 GHz / 2200 MHz |
||||||
| Maximum turbo frequency |
3.1 GHz / 3100 MHz |
||||||
| Bus speed | 5 GT/s Direct Media Interface | ||||||
| Clock multiplier | 22 | ||||||
| Package | 988-pin micro-PGA (rPGA988B) | ||||||
| Socket | Socket G2 / rPGA988B | ||||||
| Size | 1.48″ x 1.48″ / 3.75cm x 3.75cm | ||||||
| Weight | 0.2oz / 6.8g | ||||||
| Introduction date | October 12, 2011 | ||||||
| Price at introduction | $378 | ||||||
| S-spec numbers | |||||||
|
|||||||
| Architecture / Microarchitecture | |||||||
| Instruction set | x86 | ||||||
| Microarchitecture | Sandy Bridge | ||||||
| Processor codename | Sandy Bridge | ||||||
| Core stepping |
D2 |
||||||
| Manufacturing process | 0.032 micron High-K metal gate process | ||||||
| Data width |
64 bit |
||||||
| The number of CPU cores | 4 | ||||||
| The number of threads |
8 |
||||||
| Floating Point Unit | Integrated | ||||||
| Level 1 cache size |
4 x 32 KB instruction caches |
||||||
| Level 2 cache size |
4 x 256 KB |
||||||
| Level 3 cache size |
6 MB |
||||||
| Cache latency | 3 (L1 cache) 9 (L2 cache) 21 (L3 cache) |
||||||
| Physical memory | 16 GB | ||||||
| Multiprocessing | Uniprocessor | ||||||
| Extensions & Technologies |
|
||||||
| Security Features |
NX / XD / Execute disable bit |
||||||
| Low power features | Enhanced Intel SpeedStep technology | ||||||
| Integrated Graphics Processing Unit | |||||||
| GPU Type |
HD 3000 |
||||||
| Microarchitecture | Gen 6 | ||||||
| Execution units | 12 | ||||||
| Base frequency (MHz) | 650 | ||||||
| Maximum frequency (MHz) | 1100 | ||||||
| Display controller | 2 displays | ||||||
| Integrated peripherals / components | |||||||
| Memory controller |
The number of controllers: 1 |
||||||
| Other peripherals |
|
||||||
| Electrical / Thermal parameters | |||||||
| Maximum operating temperature | 100°C | ||||||
| Thermal Design Power | 45 Watt | ||||||
