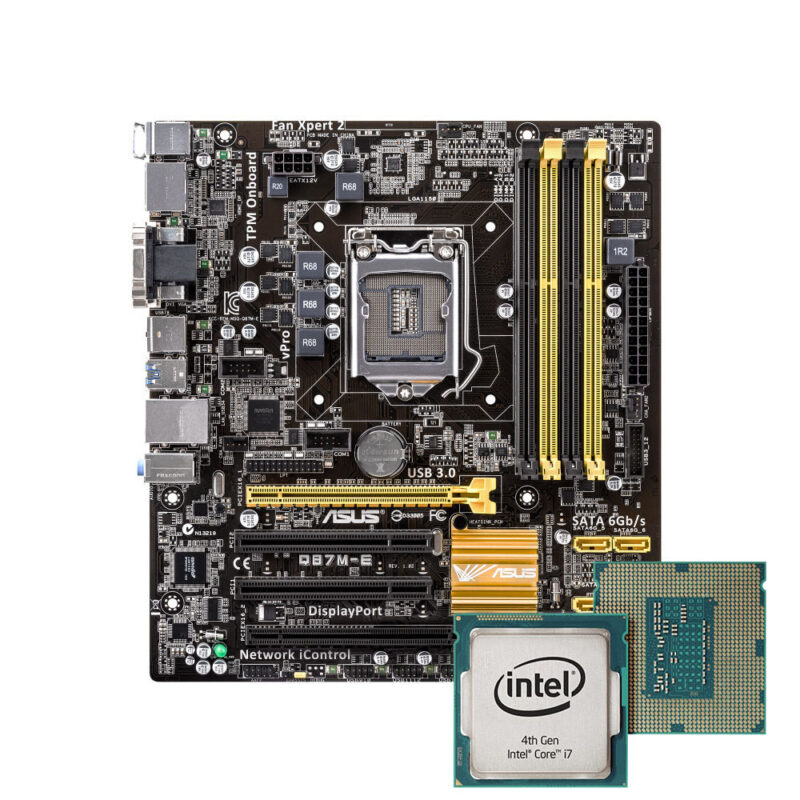

باندل مادربرد  ASUS Q87M-E و  پردازنده  Core i7 4790

 مدل پردازنده  =  Core i7 4790

لینک مشخصات  پردازنده

https://www.intel.com/content/www/us/en/products/sku/80806/intel-core-i74790-processor-8m-cache-up-to-4-00-ghz/specifications.html

پردازنده  دارای گرافک داخلی قدرت مند intel HD 4600  میباشد.

این باندل فقط شامل  مادربرد+ پردازنده  + پنل  ارسال میشود .

مدل مادربرد ASUS Q87M-E

لینک مشخصات مادربرد از  سایت اصلی  سازنده

 asus.com/Commercial-Motherboard/Q87ME

مادر برد فوق العاده حرفه ای و پر آپشن

دارای

یک عدد VGA  یک عدد DVI  یک عدد  HDMI  یک عدد displayport

صدای 3 کاناله

دو  اسلات گرافیک   چهار  اسلات رم  شش عدد SATA  دو عدد USB3

ساپورت 32 گیگ  رم

مشخصات کامل درج شده در سایت سازنده

CPU

• Intel® Socket 1150 for 4th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
  Supports Intel® 22 nm CPU
  Supports Intel® Turbo Boost Technology 2.0
  * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.

• Chipset

  Intel® Q87

• Memory

  4 x DIMM, Max. 32GB, DDR3 1600/1333/1066 MHz Memory
  Dual Channel Memory Architecture
  * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

• Graphic

  Integrated Graphics Processor
  Multi-VGA output support : HDMI/DVI-D/RGB/DisplayPort ports
  – Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
  – Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
  – Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
  – Supports DisplayPort with max. resolution 4096 x 2160 @ 24 Hz / 3840 x 2160 @ 60 Hz
  Supports up to 3 displays simultaneously

• Multi-GPU Support

  Supports AMD Quad-GPU CrossFireX™ Technology

• Expansion Slots

  1 x PCIe 3.0/2.0 x16 (yellow)
  1 x PCIe 2.0 x16 (x4 mode, dark brown)
  2 x PCI

• Storage

  Intel® Q87 chipset :
  6 x SATA 6Gb/s port(s), yellow
  Support Raid 0, 1, 5, 10

• LAN

  Intel® I217LM, 1 x Gigabit LAN Controller(s)

• Audio

  Realtek® ALC887-VD 8-Channel High Definition Audio CODEC
  – Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, Anti-pop Function

• USB Ports

  Intel® Q87 chipset :
  4 x USB 3.1 Gen 1 port(s) (2 at back panel, , 2 at mid-board)
  Intel® Q87 chipset :
  10 x USB 2.0 port(s) (4 at back panel, , 6 at mid-board)

• Special Features

  ASUS 5X Protection :
  – ASUS DIGI+ VRM – 4 Phase digital power design
  – ASUS Enhanced DRAM Overcurrent Protection – Short circuit damage prevention
  – ASUS ESD Guards – Enhanced ESD protection
  – ASUS High-Quality 5K-Hour Solid Capacitors – 2.5x long lifespan with excellent durability
  – ASUS Stainless Steel Back I/O – 3x more durable corrosion-resistant coating
  ASUS EPU :
  – EPU
  ASUS Exclusive Features :
  – GPU Boost
  – AI Suite 3
  – Ai Charger
  – Anti-Surge
  – ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
  – Network iControl
  – USB 3.0 Boost
  ASUS Quiet Thermal Solution :
  – ASUS Fan Xpert 2
  ASUS EZ DIY :
  – ASUS CrashFree BIOS 3
  – ASUS EZ Flash 2
  – ASUS MyLogo 2
  ASUS Q-Design :
  – ASUS Q-Slot
  – ASUS Q-DIMM
  100% All High-quality Conductive Polymer Capacitors
  TPM IC Onboard

• Operating System Support

  Windows® 8
  Windows® 7

• Back I/O Ports

  1 x PS/2 keyboard (purple)
  1 x PS/2 mouse (green)
  1 x DVI-D
  1 x D-Sub
  1 x DisplayPort
  1 x HDMI
  1 x LAN (RJ45) port(s)
  2 x USB 3.1 Gen 1
  4 x USB 2.0
  3 x Audio jack(s)

• Internal I/O Ports

  1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
  3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s)
  1 x LPT1 header
  2 x COM port(s) connector(s)
  6 x SATA 6Gb/s connector(s)
  1 x CPU Fan connector(s)
  2 x Chassis Fan connector(s)
  1 x 24-pin EATX Power connector(s)
  1 x 8-pin ATX 12V Power connector(s)
  1 x Front panel audio connector(s) (AAFP)
  1 x Internal speaker connector(s)
  1 x System panel(s)
  1 x Chassis Intrusion connector(s)
  1 x Clear CMOS jumper(s)

• Accessories

  User’s manual
  I/O Shield
  2 x SATA 6Gb/s cable(s)

• BIOS

  128 Mb Flash ROM, AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3

• Manageability

  WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE

• Support Disc

  Drivers
  ASUS Utilities
  ASUS Update
  Anti-virus software (OEM version)

• Form Factor

  mATX Form Factor
  9.6 inch x 8.8 inch ( 24.4 cm x 22.4 cm )
